Bending/Drawing


Multiple drawing die improve yield considerably



Stable quality, Maintenance decrease!





Product

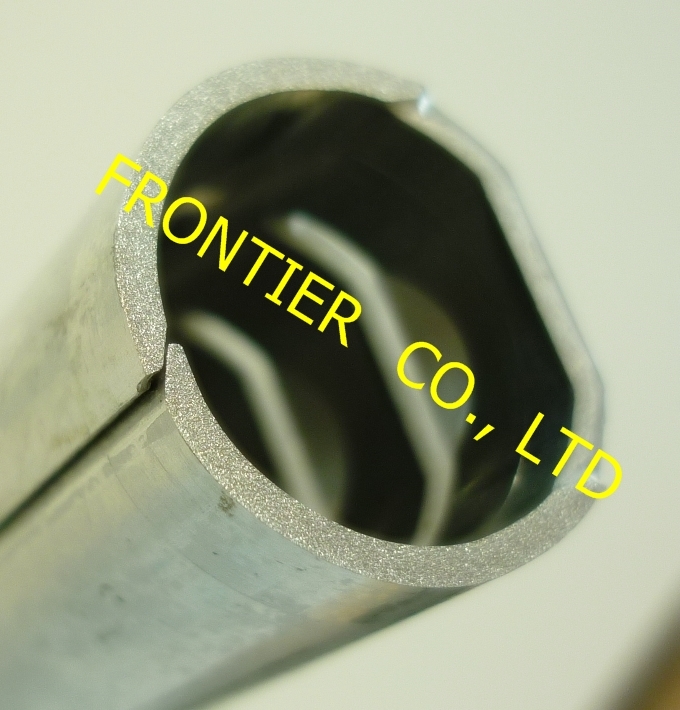

Pipe header (Automobile part)

Tool type

Precision progressive die

Material

Aluminum, thickness 1.2mm

Point

Product length: about 500mm

Curl in the die











Product

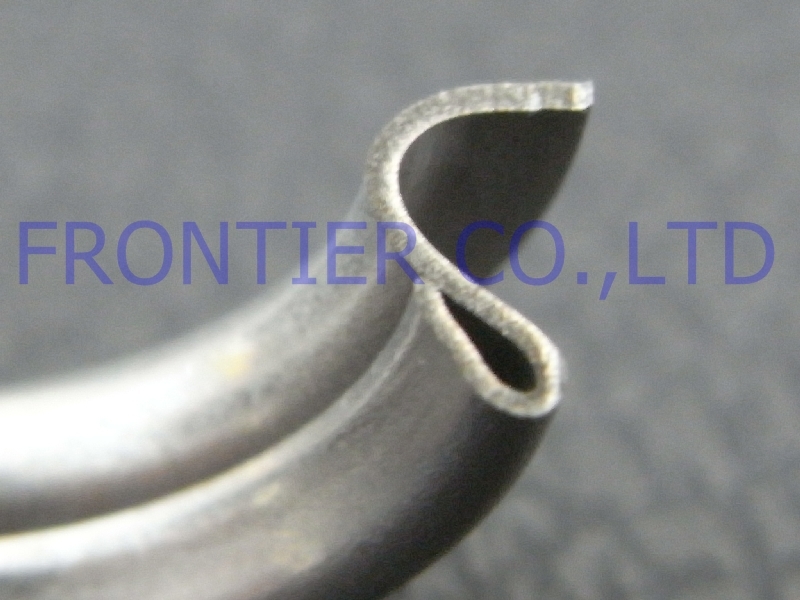

Gasket ring (Automobile part)

Tool type

Precision progressive die

Material

SUS, thickness 0.3mm

Point

Draw before hemming

Finish composite processing with the progressive die




Product

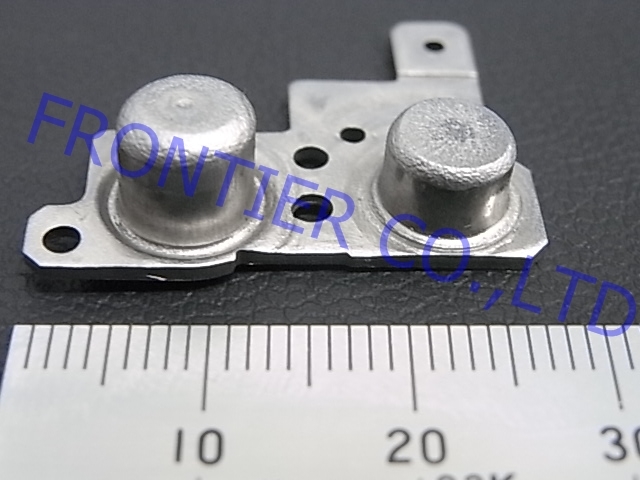

Tripod part for digital camera

Tool type

Precision progressive die

Material

SUS, thickness 1.0mm

Point

Several drawing process in a same plane








Product

Precision part for liquid crystal backlight

Tool type

Precision progressive die

Material

SUS, thickness 0.18mm

Point

Drawing φ1mm or less

Three cavities die
